SCHWERLL gas-side high-pressure pipeline integration uses stainless-steel piping and gas-specific sealing features for high-pressure gas piping applications. Published product information describes pressure-withstand testing, nitrogen leak-tightness testing, ultrasonic cleaning and demagnetization. Exact pressure, dimensions, operating gas and regulatory scope require configuration confirmation.

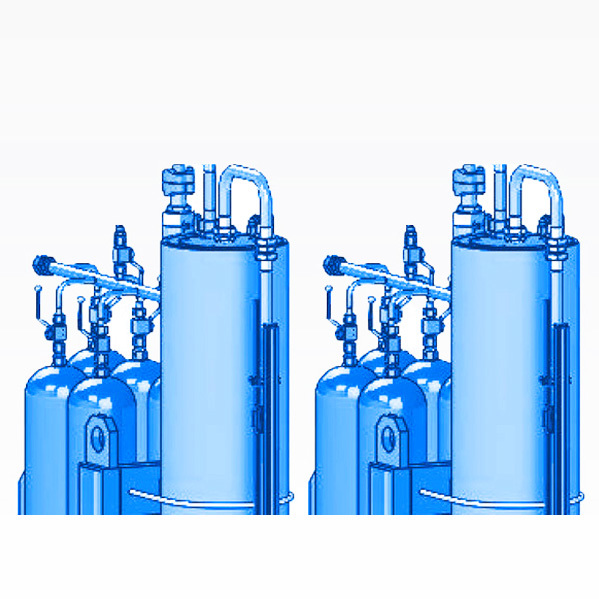

Gas-Side High-Pressure Pipeline Integration
SCHWERLL’s gas-side high-pressure pipeline integration is designed for high-pressure gas piping within engineered energy-storage and fluid-power systems. The official product information describes stainless-steel fluid-grade piping together with connectors, flanges and elbows.
Sealing and Assembly
The published configuration includes gas-specific pre-installed double-seal ferrules and a dual-seal pipeline sealing arrangement. SCHWERLL also describes a soft-seal system using grease intended to resist nitrogen exposure. Exact seal materials, component ratings and operating-gas compatibility must be confirmed for the supplied configuration.
Cleaning and Mechanical Integration
The manufacturer describes ultrasonic cleaning and demagnetization of assembly parts, together with a dedicated damping and vibration-isolating framework. Dacromet-treated bolted connections are also described for hydrogen-embrittlement prevention. Numerical performance limits and verification criteria are not published in the reviewed Post80 evidence.
Optional Welded Piping
Official product information states that welded piping can be produced on request for specified high-cleanliness or aerospace-oriented requirements. This is an optional project configuration and is not presented as standard content of every supplied system.
Testing Context
The manufacturer describes pressure-withstand testing of the gas-side piping, followed by system nitrogen leak-tightness and nitrogen pressure testing. The available bilingual source does not establish a safe, unambiguous test-pressure multiplier or reference pressure; exact test pressure, duration, acceptance criteria and documentation therefore require configuration confirmation.
Configuration Confirmation
Working and design pressure, pipe dimensions, material grades, fittings and flange ratings, operating-gas compatibility, cleanliness acceptance criteria, inspection documentation and applicable regulatory requirements must be confirmed for the supplied project configuration.
