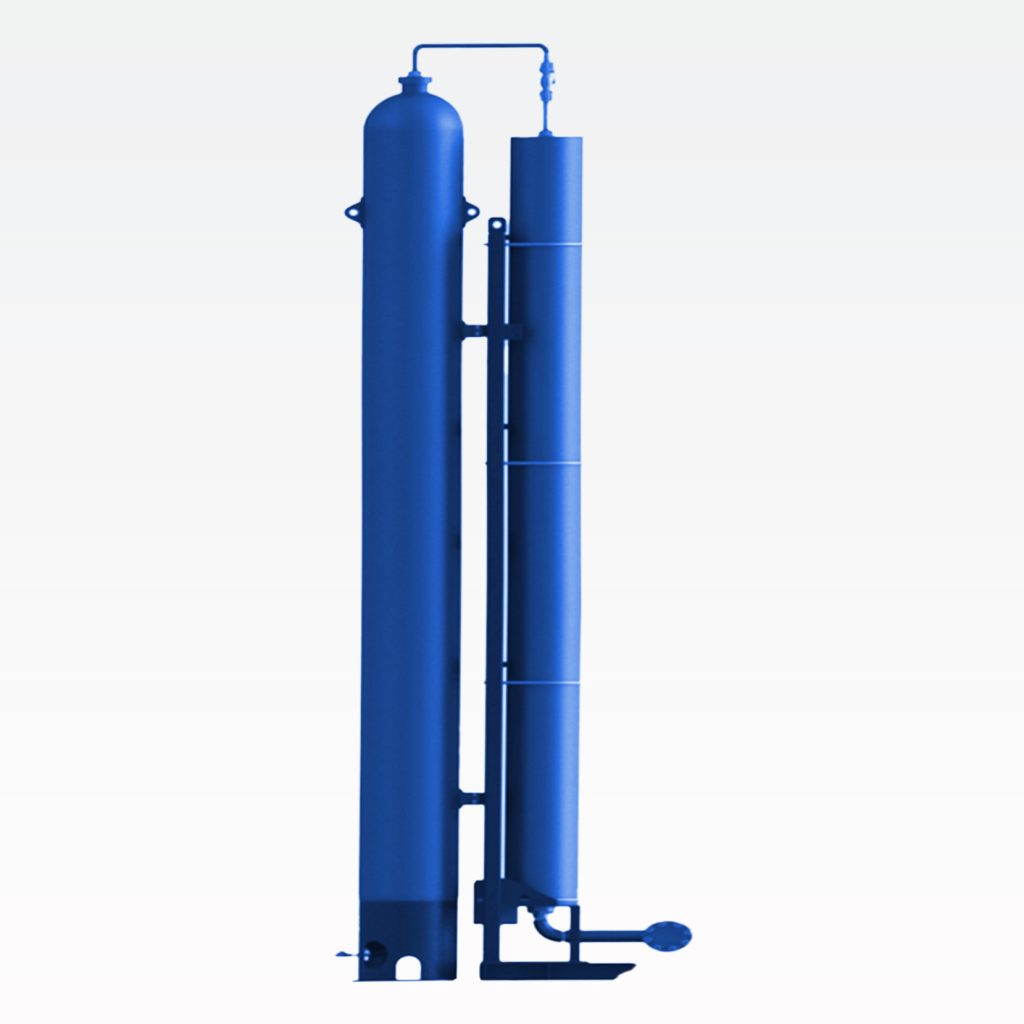

SCHWERLL manufactures and supplies gas-loaded high-pressure hydraulic piston accumulators engineered for extreme-duty fluid power systems, including energy storage, emergency actuation, pulsation damping, and rapid fluid discharge. SCHWERLLu2019s official High-Parameter Piston product information publishes engineering configurations up to 200 MPa (30,000 psi class) and unit capacities from 0.01 L to 1,500 L. Final allowable working pressure, capacity and configuration are confirmed for the approved project configuration. Systems serve heavy industrial forging, offshore oil and gas, subsea intervention, and servo-hydraulic test benches, with applicable pressure-vessel design-code, regulatory and conformity-assessment requirements reviewed according to project specification and destination market.
Engineering Envelope Note: Published SCHWERLL High-Parameter Piston product data; final model and project rating are confirmed in approved technical documentation.
Piston Accumulator Pressure & Capacity Range
To differentiate between standard plant automation and extreme-duty hydraulic power demands, SCHWERLL categorizes piston accumulators across distinct engineering tiers:
| Product Tier | Design Pressure (Pn) | Volume Range | Typical Role & Vessel Codes | Specification Scope |
|---|---|---|---|---|
| Standard Industrial Piston | Conventional Industrial Pressures (Project Configured) | Application-Sized Capacities (Project Configured) | General industrial machinery, plastic injection, steel plant auxiliaries; design rules reviewed per project specification | Standard Piston Accumulator |
| High-Pressure Piston | Up to 200 MPa (30,000 psi class)* | 0.01 L to 1,500 L per unit* | Heavy forging presses, offshore drilling, valve emergency shutdown, high-flow ejection; design rules reviewed per project specification | Current Product Specification |
| Custom Extreme-Duty Piston | Bespoke Ultra-High Pressure Envelope | Application Sized (Bespoke) | Hydrostatic burst test rigs, isostatic pressing, subsea deep-water simulation; ASME VIII-1/VIII-3 design rules / TPI Witness option | Project-Specific Technical Review |
Technical Specifications & Operational Boundaries
| Technical Parameter | Engineering Rating & Specification Scope |
|---|---|
| Maximum Design Pressure | SCHWERLLu2019s official High-Parameter Piston product information publishes engineering configurations up to 200 MPa (30,000 psi class). Final allowable working pressure is confirmed for the approved project configuration. |
| Nominal Capacity Range | Published Product Capacity: 0.01 L to 1,500 L per unit. Published SCHWERLL product data; final supplied capacity and configuration are confirmed in approved project documentation. Large-scale energy storage can be engineered by manifolding multiple cylinders or pairing with auxiliary nitrogen storage vessels per project specification. |
| Piston Velocity | Published Maximum Piston Velocity: up to 9 m/s; applicable duty limits are confirmed for the selected configuration. |
| Dynamic Response & Transfer Function | Published Transfer-Function Capability: up to 200 Hz and above, as stated in SCHWERLLu2019s official High-Parameter Piston product information (transfer-function / dynamic hydraulic response context, not a universal mechanical stroke frequency); project applicability confirmed by engineering review. |
| Operating Temperature Limits | Operating temperature range depends on selected seals, hydraulic fluid and project environment. Dynamic elastomer and composite seal packages are engineered according to the specified working fluid, operating pressure, and thermal environment. |
| Applicable Hydraulic Media | Published Hydraulic Media Examples: Mineral hydraulic oil, water-glycol and phosphate-ester fluids. Final compatibility depends on selected seals/materials and project fluid specification; dry nitrogen gas precharge. |
| Cylinder Shell & Bore Finish | Cylinder material and construction are selected according to pressure rating, design-code requirements and approved engineering specification. Cylinder bore finish and piston/seal configuration are defined according to the approved engineering specification. |
| Fatigue / Design Assessment | Fatigue and cyclic-duty assessment requirements are defined according to the applicable design route and project engineering specification. |
High-Pressure Hydraulic Application Matrix
High-pressure piston accumulators are engineered for demanding industrial fluid power applications requiring robust energy storage, dynamic response, or gas-fluid separation with seal performance selected for the operating duty:
| Application Sector | Operational Role of Piston Accumulator | Key Engineering Sizing Concerns |
|---|---|---|
| Hydraulic Test Rigs & Burst Benches | Rapid hydrostatic pressurization, pressure pulse injection, high-frequency pressure stabilization. | Real-gas compressibility factor (Z) at elevated pressures, cyclic fatigue life under alternating pressure cycles. |
| Offshore & Subsea Systems | Emergency shutdown (ESD) valve actuators, Blowout Preventer (BOP) banks, underwater pressure balancing. | External hydrostatic collapse resistance, low-temp seal resilience, seawater corrosion protection. |
| Forging, Extrusion & Stamping Presses | High-volume fluid delivery during rapid ram approach, peak power shaving, instantaneous shock suppression. | Piston discharge velocity up to 9 m/s published capability, oil-side nozzle flow capacity, cavitation prevention. |
| Emergency Power Units (EPU) | Dedicated stored fluid energy to close safety gates, valves, or emergency brakes upon electrical failure. | Gas retention and long-term pressure stability depend on seal configuration, operating conditions and maintenance interval; piston position monitoring options available for precharge integrity. |
| High-Frequency Servo Systems | Ripple attenuation on servo supply lines, instantaneous fluid demand buffering during valve shifting. | Fluid transfer function bandwidth up to 200 Hz and above (published transfer-function capability), where seal friction and dynamic response are considered in dynamic hydraulic applications. |
International Pressure Vessel Compliance Matrix
SCHWERLL manufactures and supplies high-pressure piston accumulators structured around verified technical qualification and jurisdiction-specific conformity pathways. Compliance is evaluated by equipment category and project specification:
| Requirement / Code | Scope & Application | Availability & Route | Evidence / Qualification |
|---|---|---|---|
| ASME Section VIII Div. 1 | Design rules for unfired pressure vessels and qualified project configurations. | ASME Section VIII design calculations and documentation provided for qualified project configurations upon review. | Engineering Design Basis / Project Review |
| ASME Section VIII Div. 3 | Alternative rules for construction of high-pressure vessels, applicable to extreme-duty project engineering. | Finite element stress analysis, fracture mechanics, and engineering documentation engineered to Division 3 rules; certification route subject to project specification. | Engineering Design Basis / Project Review |
| EU PED 2014/68/EU | Pressure Equipment Directive for European Union market access (Group 1 & Group 2 fluid media). | Conformity-assessment requirements and technical documentation route are reviewed according to equipment category, destination and project scope. | Project-Specific Review |
| GB/T 20663-2026 | China national standard for accumulator pressure vessels (implemented August 1, 2026, superseding GB/T 20663-2017). | Applicable product-standard design and documentation requirements are reviewed according to product configuration and project scope. | Product Standard Context |
| China TSG 21 / Special Equipment | TSG 21-2016 Stationary Pressure Vessel Safety Technical Regulation. | Applicable China pressure-equipment regulatory requirements are reviewed according to product configuration and project scope. | Regulatory Review Context |
| Destination Market Review | International export jurisdictions and regional technical regulations. | Destination-market documentation and conformity requirements can be reviewed per project specification. | Project-Specific Review |
| Third-Party Inspection (TPI) | Independent third-party inspection and witness coordination. | Third-party inspection or witness activities may be coordinated where required by the agreed project inspection scope. | Project-Specific Witness Option |
Piston Position & Energy Monitoring Systems
Monitoring options may be configured according to project instrumentation requirements; corporate product literature includes ES/SV-type switches and selected displacement or liquid level monitoring approaches. Final availability is confirmed for the supplied accumulator configuration:
- ES-Type Electrical Limit Switches: End-of-stroke electrical limit indication to signal complete discharge or charging position.
- SV-Type Monitoring Devices: Position monitoring units equipped with electrical limit switches.
- Ultrasonic / Laser Displacement Systems: Non-invasive ultrasonic or optical displacement measurement systems configured according to vessel specification.
- Level Transmitters & Magnetic Level Indicators: Liquid level transmitters and magnetic level indicators configured for external fluid level tracking and PLC integration per project requirements.
RFQ Engineering Specification Checklist
To ensure accurate configuration and prompt quotation for high-pressure piston accumulators, please provide the following technical parameters with your inquiry:
| Engineering Specification Field | Required Technical Input from Buyer |
|---|---|
| System Operating Pressures | Maximum operating pressure (P2), minimum working pressure (P1), and specified gas precharge (P0). |
| Effective Output Volume (ΔV) | Required usable fluid volume per cycle (liters or gallons). |
| Discharge Time / Cycle Frequency | Duration of discharge phase (rapid discharge vs slow hold) and duty cycle frequency (cycles/hour or Hz). |
| Hydraulic Fluid Media | Fluid type, viscosity grade, brand/spec, and water content (determines seal compound and material selection). |
| Operating & Ambient Temperatures | Minimum and maximum fluid temperature; lowest ambient winter temperature (for Arctic/cryogenic review). |
| Piston Dynamic Requirements | Continuous speed requirement, required peak discharge velocity, and dynamic response specifications. |
| Installation & Mounting Orientation | Vertical (fluid port down – recommended) or horizontal (requires piston support ring verification). |
| Port Connections & Valves | Fluid port type (SAE flanged, high-pressure threaded), gas port type, and need for integrated safety block. |
| Pressure Vessel Code & Compliance | Required design code: ASME Section VIII (Div. 1 / Div. 3 design review), EU PED 2014/68/EU (route per category), China TSG 21 / GB/T 20663-2026, or project-specific TPI inspection. |
| Quality & Inspection Scope | Material documentation, non-destructive testing (NDT), and third-party inspection witness requirements are defined according to the agreed project inspection plan. |
| Piston Position Instrumentation | Specify electrical limit switches (ES/SV), ultrasonic/laser displacement, or level indicators and required control output signals. |
| Destination Country & Project Terms | Final installation country, required import documentation, order quantity, and target delivery schedule. |
Technical Sizing & Integration Links
u2022 Sizing Verification: Calculate preliminary volume parameters using our preliminary hydraulic accumulator sizing calculator. Note that high-pressure final selection requires engineering verification incorporating real-gas compressibility (Z-factor).
u2022 Standard Industrial Systems: For conventional industrial piston-accumulator duties and project-configured operating envelopes, see the Standard Piston Accumulator page.
u2022 System Protection: Safeguard fluid lines and ensure code compliance with an integrated accumulator safety and shut-off valve block.
u2022 Precharge Maintenance: Consult our engineering hydraulic accumulator nitrogen precharge guide for precharge verification and safety protocols.
u2022 Complete Portfolio: Review our comprehensive piston accumulator product range for lightweight, standard, and high-parameter configurations.
